Ventilated Rainscreen Systems

Ventilated rainscreen façade engineering by Facade Ghana for Accra — a back-ventilated, drained cavity behind an outer skin of ACP, ceramic, terracotta or fibre-cement, engineered for thermal and moisture performance in a tropical climate, with fire-classed skins to EN 13501-1. Since 1982.

A ventilated rainscreen is a two-layer façade — an outer skin fixed off the wall on a sub-frame, with a continuous back-ventilated, drained air cavity between the skin and the insulated wall behind. The outer skin sheds most of the rain; any water past the open joints drains down the cavity and the moving air dries it out. Facade Ghana has engineered performance-tested envelopes across Ghana since 1982, and our position on rainscreen is simple: the cavity is the system, not a gap left by accident.

Why the Cavity Is the Whole Decision

A face-fixed cladding and a ventilated rainscreen can use the same outer panel and look almost identical — but they manage water and heat in opposite ways. A sealed, face-fixed skin relies on the outer joints staying perfect forever and traps any moisture that gets in. A back-ventilated rainscreen assumes water will get past the joints, and engineers a drained, ventilated cavity so that water drains away and the moving air dries the wall. In a tropical climate that difference is the difference between a wall that breathes and a wall that grows damp behind the panels. The cavity, its drainage and its ventilation are the engineering — the panel is the finish.

Choosing a Ventilated Rainscreen

A ventilated rainscreen is the right specification when the brief calls for a durable, moisture-tolerant, thermally better envelope on a building exposed to heavy rain and strong sun — most commercial and institutional buildings in Accra and Tema. The choice within the system is the outer skin: ACP for a sleek, lightweight metallic look; ceramic, porcelain or terracotta for a robust, mineral, long-life finish; fibre-cement for a cost-conscious board. We specify the skin and the cavity together, and we name the skin’s fire class.

Ventilated Rainscreen Systems

ACP Rainscreen

An aluminium composite panel outer skin on a drained, back-ventilated cavity — light, sleek and metallic, with a wide colour and finish range. The skin’s core (PE / FR / A2) and its EN 13501-1 fire class must be named, because the core decides the fire behaviour.

Ceramic / Porcelain Ventilated Façade

A large-format ceramic or porcelain outer skin, typically on undercut or visible-clip fixings over the ventilated cavity — a mineral, non-combustible, low-maintenance, long-life finish well suited to humid, sunny exposure.

Terracotta Rainscreen

Extruded terracotta tiles or baguettes on the ventilated cavity — a natural fired-clay finish with strong shadow and texture, mineral and durable, frequently used on institutional and cultural façades.

Fibre-Cement Rainscreen

A fibre-cement board outer skin on the drained cavity — a robust, cost-conscious mineral board option for commercial and institutional buildings where the look and budget suit a flat panel.

Rainscreen Outer Skins Compared

(The skin’s fire class is per the specific product’s certification, which we provide in writing.)

How We Engineer a Ventilated Rainscreen

1. Establish the wall build-up — substrate, insulation, cavity depth and outer-skin material as one designed build-up.
2. Engineer the cavity and drainage — back-ventilated cavity, vents top and bottom, drainage path and breather / barrier layers.
3. Specify the skin and its fire class — ACP / ceramic / terracotta / fibre-cement selected for the building, EN 13501-1 class written in.
4. Install, inspect and hand over the evidence — install to detail, inspect drainage and ventilation, hand over panel data + fire classification.

Materials & Real Standards

• EN 13501-1 — European reaction-to-fire classification (Euroclass) for the outer skin; the skin’s class must be named, ACP cores especially (PE / FR / A2-s1,d0)
• ASTM E283 — air leakage of the engineered façade under specified pressure
• ASTM E331 — water penetration under static air-pressure difference
• ASTM E330 — structural performance under wind (positive and negative) load
• AAMA 501 — façade test method family, including AAMA 501.1 dynamic water-penetration testing where required
• EN 1090 — execution standard for the aluminium sub-frame (conformity / execution class)
• Skins — ACP, ceramic / porcelain, terracotta and fibre-cement, each specified for weight, fixing, fire class and the tropical exposure

What Affects the Cost

• The outer skin specified (ACP vs ceramic / porcelain vs terracotta vs fibre-cement)
• The sub-frame, cavity depth, insulation and fixing system
• Building height, exposure and access
• Panel format, fixing type (visible clip vs concealed undercut) and finish
• The fire class required of the skin and the performance testing called for

Ventilated rainscreen work is quoted on survey — the skin, sub-frame, height and access decide the figure. Indicative references and the full cost picture are on the Curtain Wall Cost Guide.

Applications Across Ghana

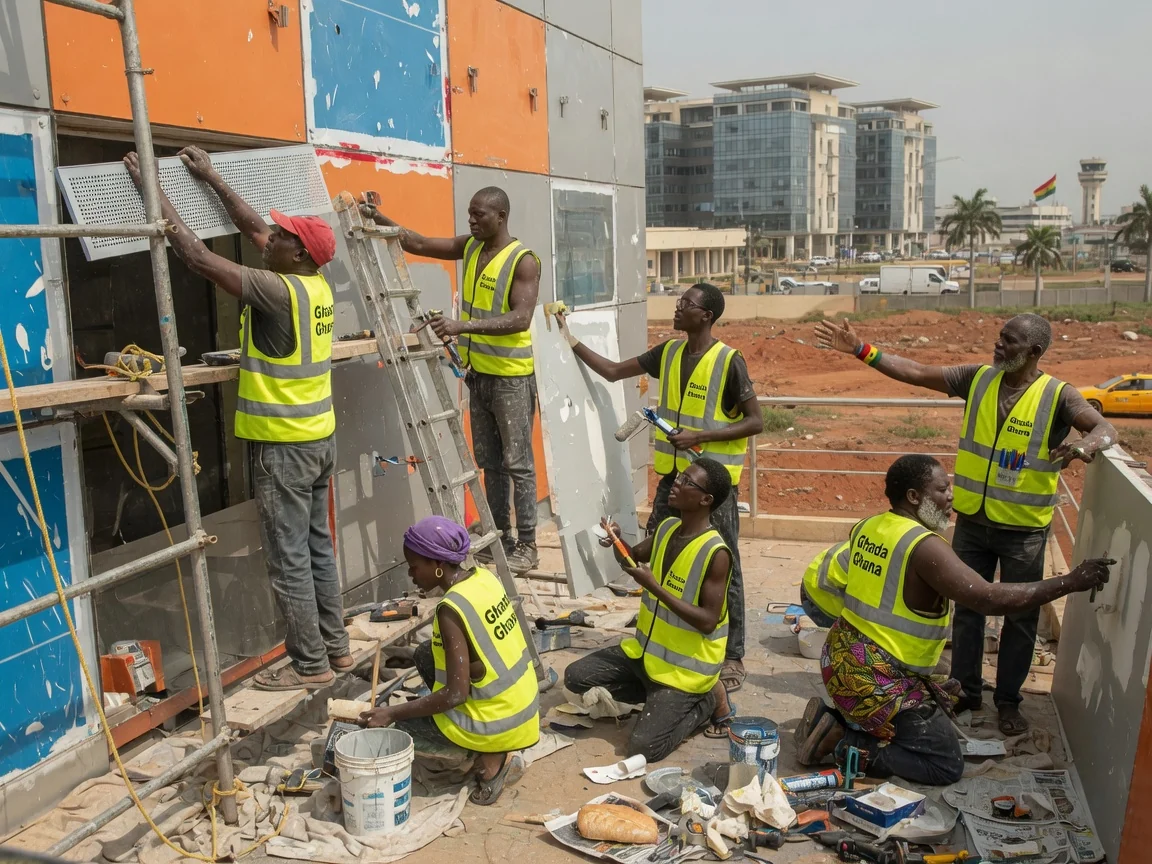

• Bank and corporate HQ façades in Airport City, Ridge and the CBD with ACP or ceramic rainscreens
• Institutional and cultural buildings using terracotta or ceramic for a mineral, long-life finish
• Hospital, education and commercial envelopes where moisture tolerance in heavy rain matters
• Re-cladding and façade upgrades adding a drained, ventilated cavity behind a new skin
• Commercial and institutional projects in Kumasi and Takoradi

Areas We Serve

Facade Ghana engineers and installs ventilated rainscreen façades across Greater Accra — Ridge, Airport City, Cantonments, the CBD, East Legon and Spintex — plus Kumasi and Takoradi.

Related Services

• Stick-Built Curtain Wall — site-assembled framed glazing
• Unitised Curtain Wall — factory-built façade units
• Structural Glazing (Frameless) — silicone-bonded frameless glass
• Wind-Load & Pressure Testing — ASTM / AAMA performance testing
• Solar-Optimised Façade — shading & thermal performance
• Heritage Façade Restoration — restoring existing envelopes
• Façade BIM Coordination — modelled, clash-free interfaces
• Façade Systems Compared — rainscreen vs curtain wall vs structural glazing
• Curtain Wall Cost Guide — GH₵ / US$ / CFA, on-survey honesty

Frequently Asked Questions

What is a ventilated rainscreen façade? A two-layer façade: an outer skin fixed off the wall on a sub-frame, with a continuous back-ventilated, drained air cavity between the skin and the insulated wall. The skin sheds most rain; water past the open joints drains down the cavity and the moving air dries it. The drained, ventilated cavity is the whole point.

Why does a ventilated rainscreen suit a tropical climate like Ghana? A sealed, face-fixed cladding traps moisture and heat against the wall. A back-ventilated rainscreen drains and dries any water that gets in, and the ventilated cavity plus insulation reduces solar heat gain. It is a moisture-tolerant, thermally better envelope for the Accra climate — provided the cavity and drainage are engineered.

Which outer-skin materials can be used on a rainscreen? ACP, ceramic / porcelain, terracotta, fibre-cement and other boards, each with different weight, fixing and appearance. The skin is chosen for the building, but every combustible or composite skin must have its reaction-to-fire class named, because skin and cavity together decide the fire behaviour.

Which standards apply to a rainscreen façade? The outer-skin reaction-to-fire is classified to EN 13501-1, and the façade can be performance-tested for air (ASTM E283), water (ASTM E331) and wind load (ASTM E330) with AAMA 501 methods where required; the aluminium sub-frame is fabricated to EN 1090. We name the skin’s fire class in writing.
